• Apply to electric bicycle rear
and front wheel with 100-142mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 36V / 48V available, top speed from 40
km/h to 45 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike

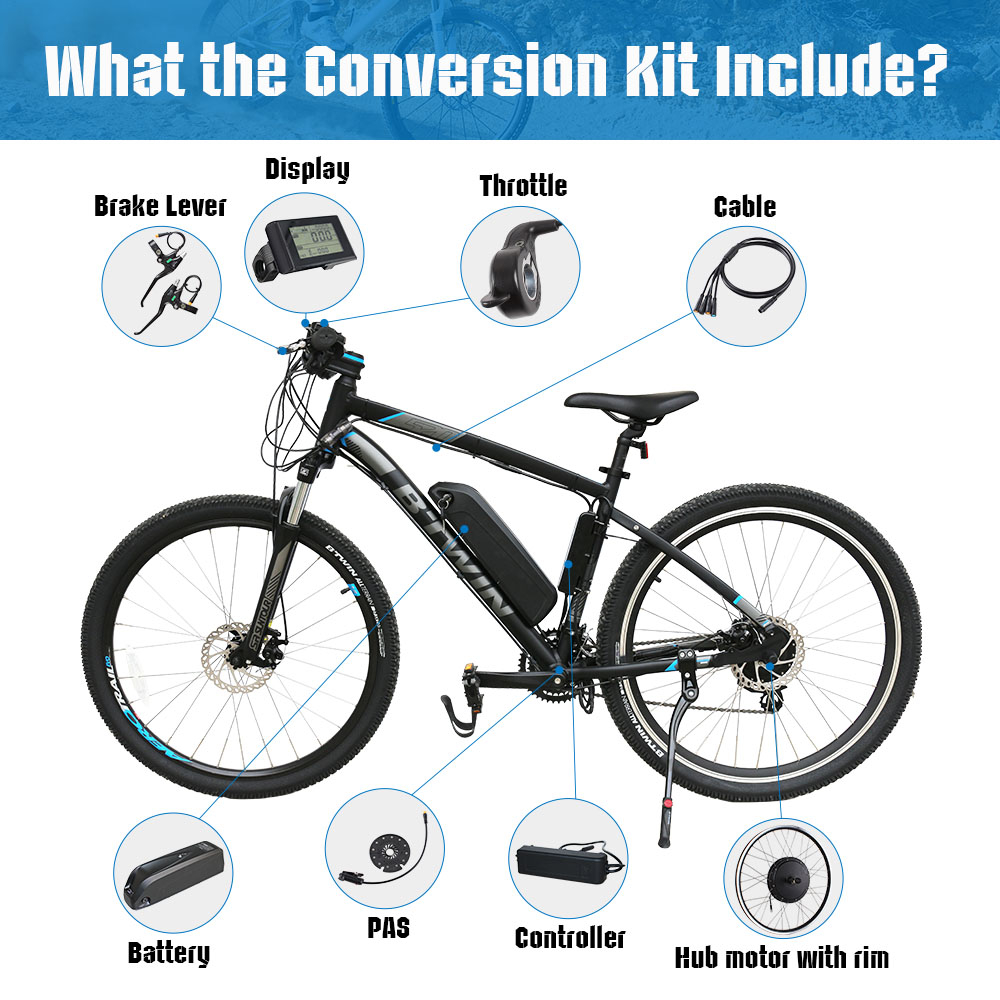

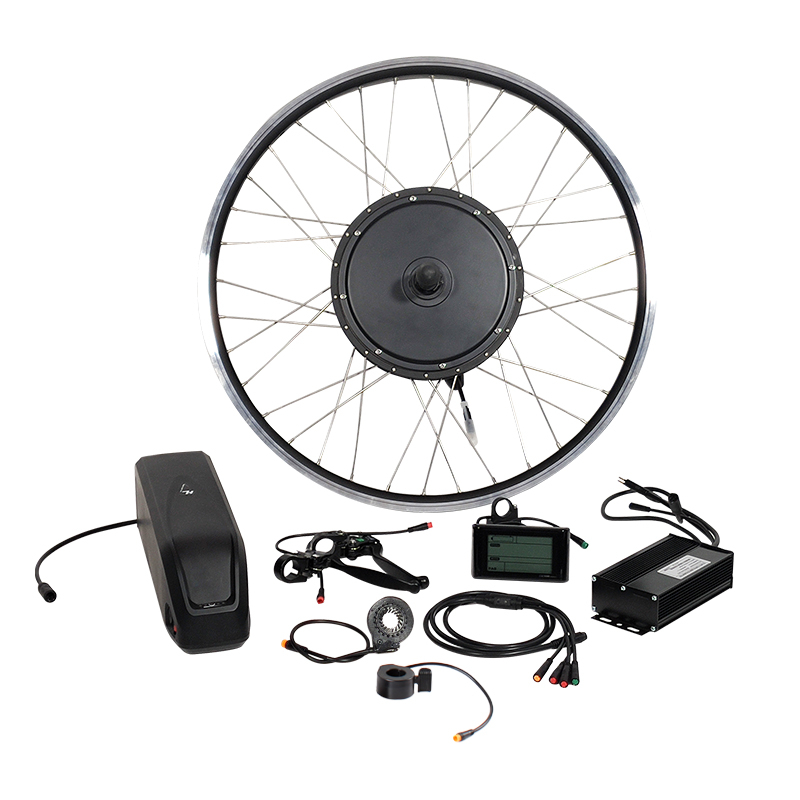

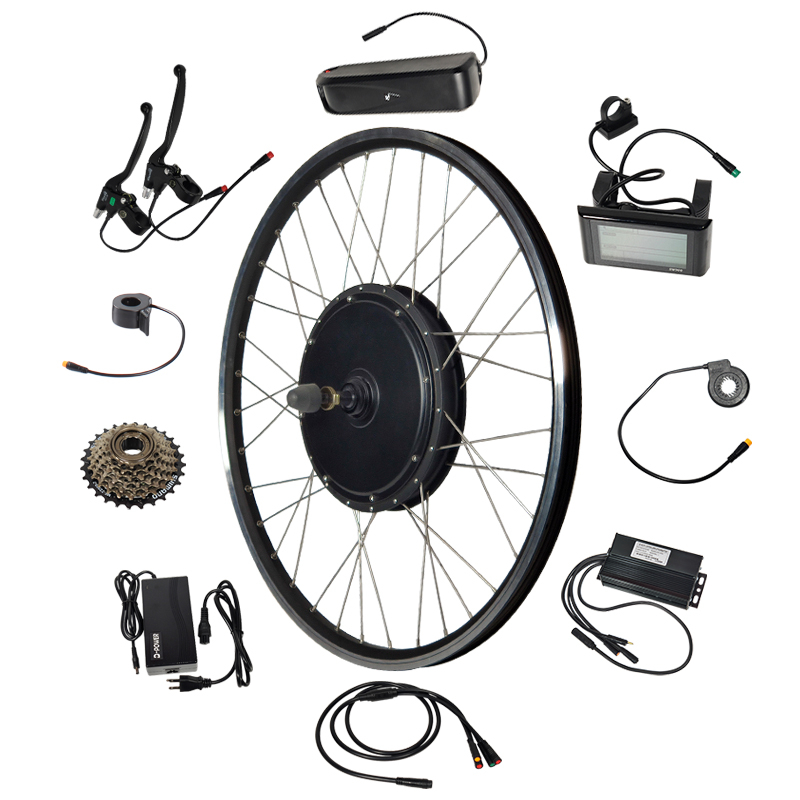

1.What the electric bike kit include?

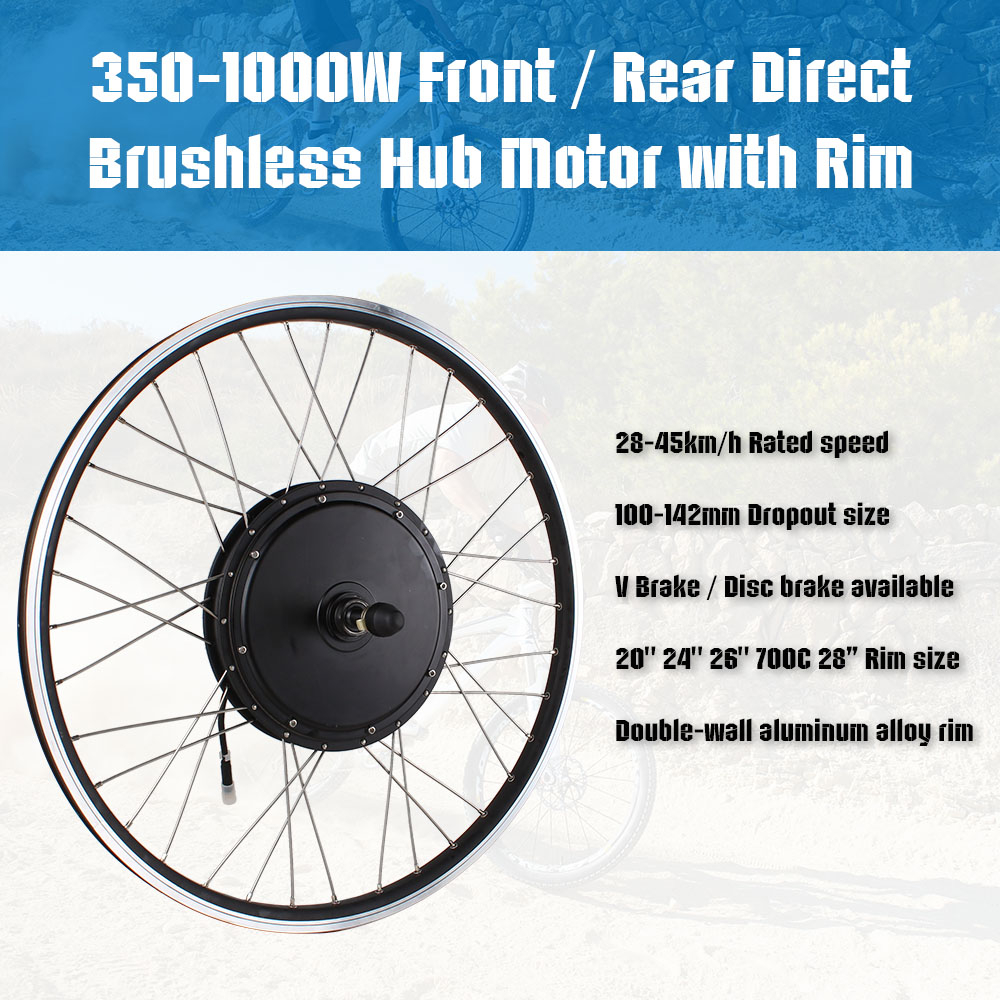

1.1.1000w
Brushless Direct Hub Motor with Rim (20" 24" 26" 27.5" 700C
28" 29")
1 2.Aluminium case controller
1 3.Thumb Throttle (Twist Throttle for optional）
1 4.SW900 LCD display(color display for optional)
1.5.Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)
1 6.12 Magnets Pedal Assistant Sensor
1 7.Connecting Cable
1 8.Lithium Battery (Optional)
2. Hub motor kit feature
• Apply to
electric bicycle rear and front wheel with 100-142mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 36V / 48V available, top speed from 40
km/h to 45 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor parameter
| Rated voltage | 36V48V |
| Rated power | 1000w |
| Motor type | Brushless Direct hub Motor |
| Controller | Brushless Smart Controller |
| Dropout size | 100-142mm |
| Wheel size | 20'' 24'' 26" 27.5" 700C 28" 29‘’ |
| Rated Speed | 40-42km/h |
| Rated Efficiency | >=83% |
| Reduction Ratio | 1:4.4 |
| Waterproof Grade | IP54 |
| Noise (db) | < 50 |
| Optional parts | Freewheel, Tyre, Head light, Disc brake, etc |
