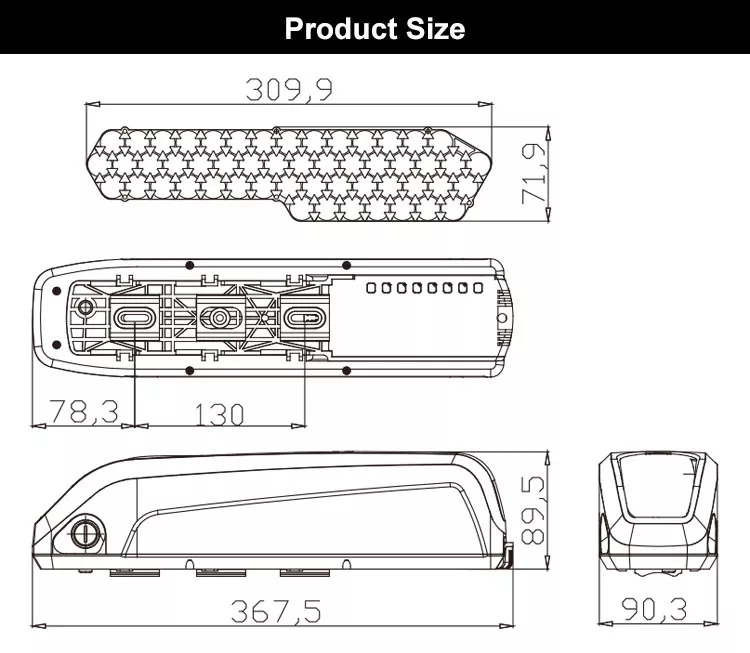

Battery Size:367*90*90mm

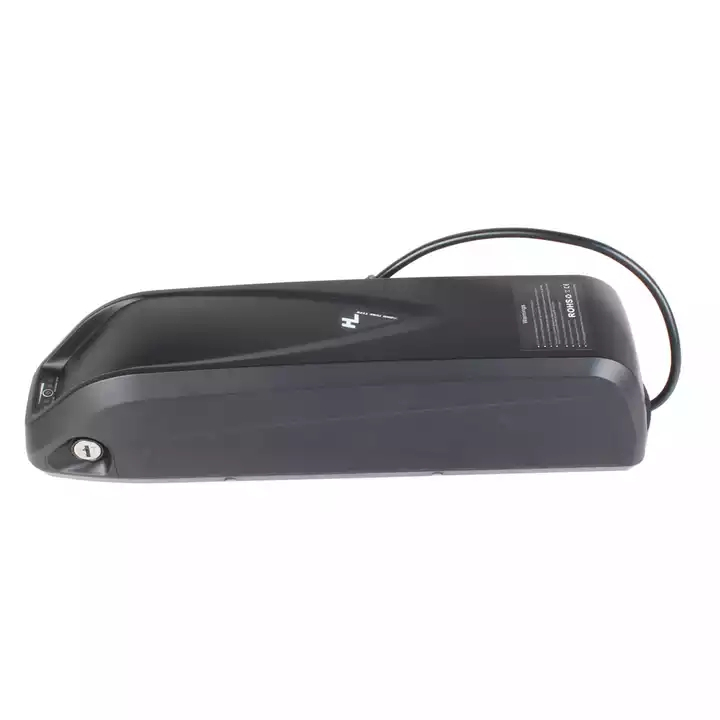

Model:Downtube E-bike Battery
Maximum cells:52pcs
Cell Voltage:3.6V/cell
Max capacity:36V 17.5Ah / 48V 14Ah
Fit Motor:250-1200W
BMS:Internal BMS
Cycle life:600-800 times
Controller space:YES
Capable for Motor:
36V 250/350/500W
48V 350/500/750/1000/1200W
Max
cells | 52pcs | ||
Configuration | 10S4P | 13S4P | |
Capacity | 2.2Ah | 36V 11Ah | 48V8.8Ah |
2.6Ah | 36V 13Ah | 48V10.4Ah | |
2.9Ah | 36V 14.5Ah | 48V11.6Ah | |
3.2Ah | 36V 16Ah | 48V12.8Ah | |
3.5Ah | 36V 17.5Ah | 48V14Ah | |
Parameters
for battery shell

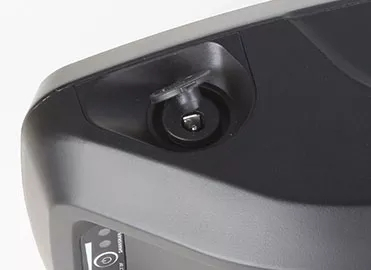

Charging port | DC2.1 |

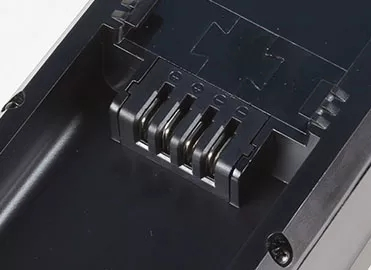

Discharge
port | 4Pin |

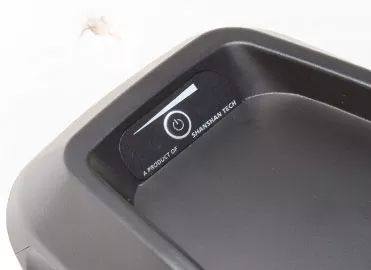

LED indicator | 4 LED lights |
USB port | YES |
Power switch | NO |
Controller
space | NO |
L·W·H (mm) | 370x90x90 |
