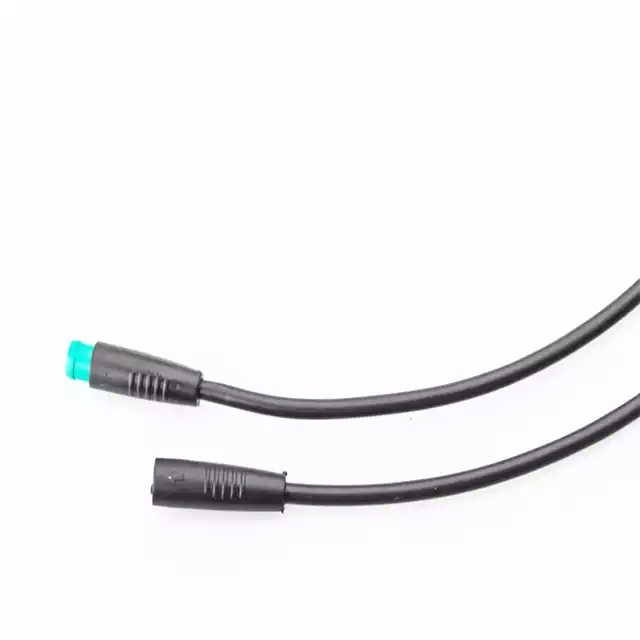

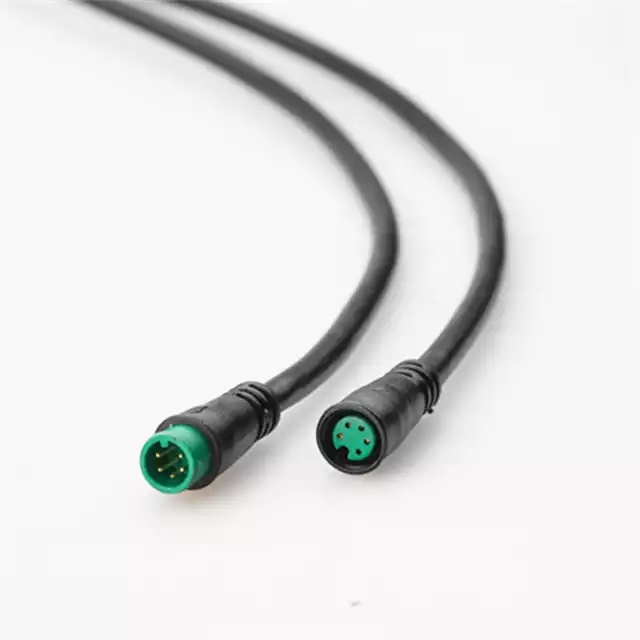

5 Pin waterproof connector cable
Application:Power
Product
name: 5 Pin waterproof connector
cable
Material:Copper/pa66/pbt/high
Temp
Interface
material:gold-plated copper alloy/in-plated copper alloy
Working temperature:-40℃—- +85℃
Rated current:5A
Withstand voltage: AC 500V 50Hz without dielectric
puncture or flashover over 1 minute.
Rated voltage:200V AC
Wire standard:0.2mm
Ingress protection:IP67
Contact resistance:≤10MΩ
Pin:5 pins
